Logisim
Logisim a graphical tool for desigining and simulating logic circuits
by carlburch

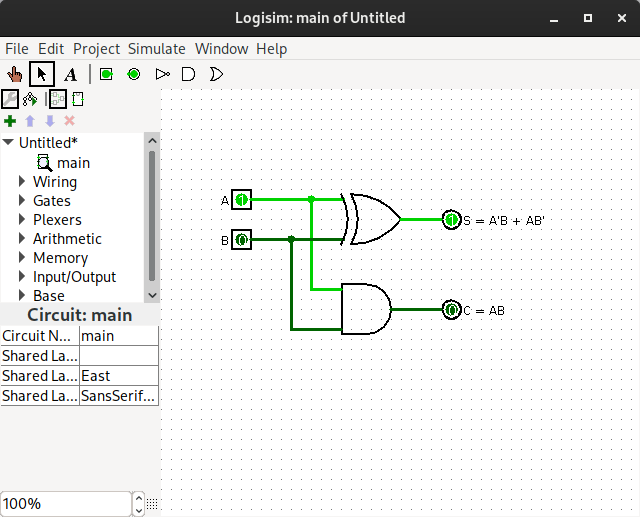

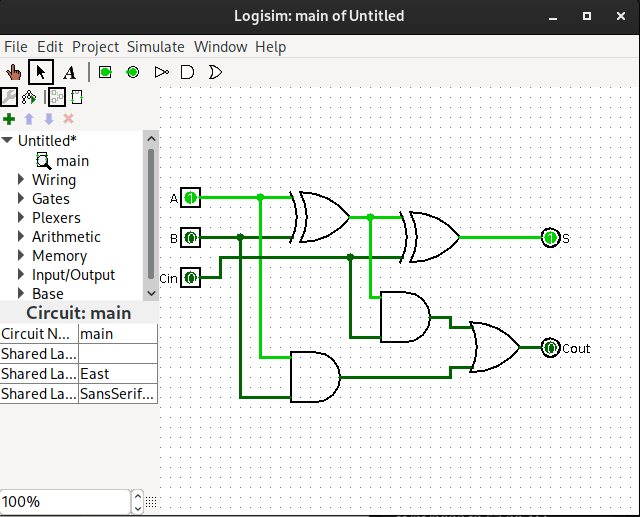

Screenshots & videos
About
Logisim is an educational tool for designing and simulating digital logic circuits. With its simple toolbar interface and simulation of circuits as you build them, it is simple enough to facilitate learning the most basic concepts related to logic circuits. With the capacity to build larger circuits from smaller subcircuits, and to draw bundles of wires with a single mouse drag, Logisim can be used (and is used) to design and simulate entire CPUs for educational purposes. Logisim is used by students at colleges and universities around the world in many types of classes, ranging from a brief unit on logic in general-education computer science surveys, to computer organization courses, to full-semester courses on computer architecture.
Additional information
- Developer
- carlburch
- License
- GPL-2.0-or-later
- Category
- Education
- Size
- 65.3 MB
- Homepage
- https://www.cburch.com/logisim
- Available via
- Flathub (Flatpak), AUR, Debian, Ubuntu, Nixpkgs
- Catalog data as of
- 9/3/2026 (dataset snapshot date — per-app update dates aren't tracked yet)
