Logisim-evolution
Digital logic designer and simulator
by Logisim-evolution developers
4.4 (5)Education
3

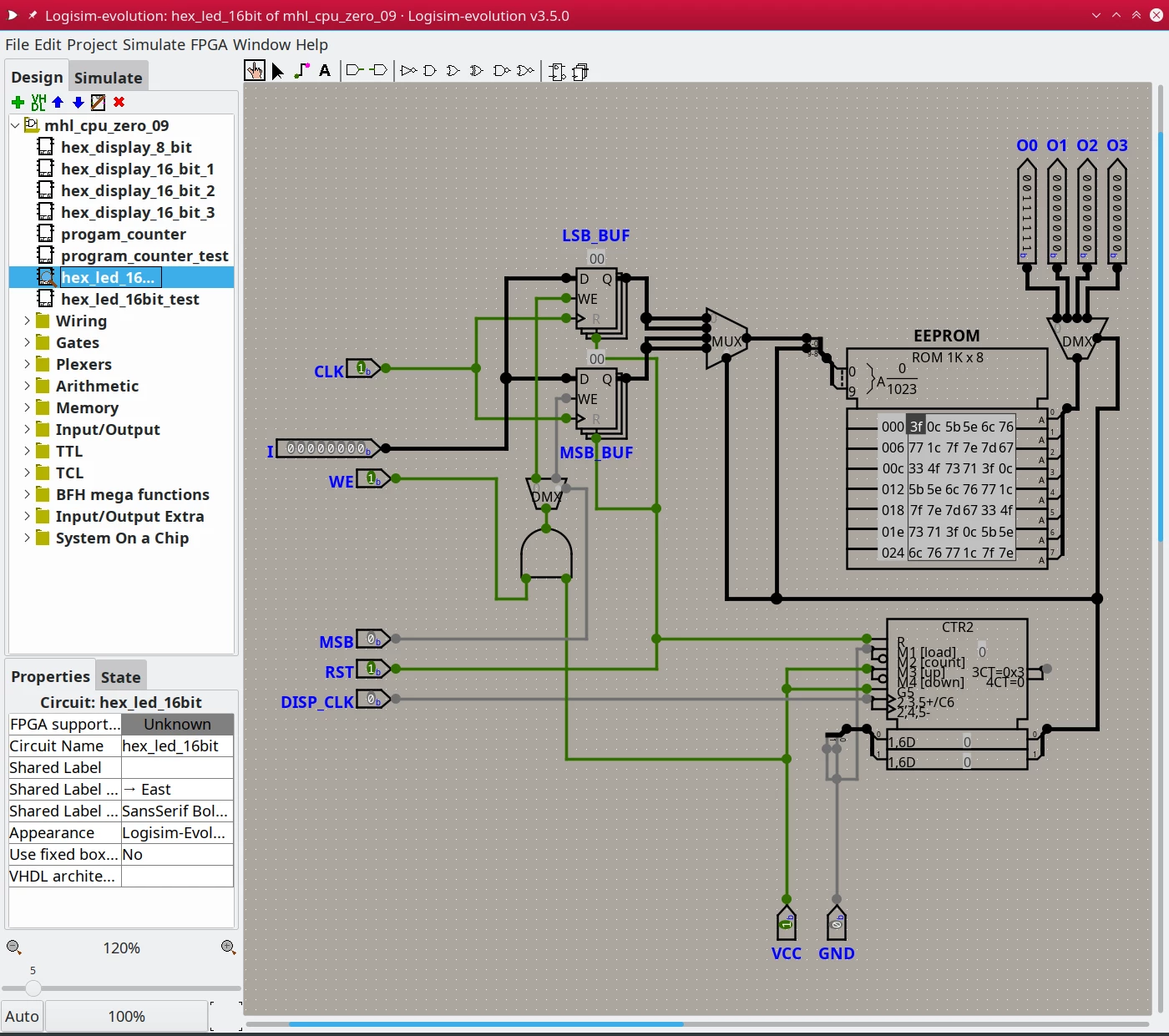

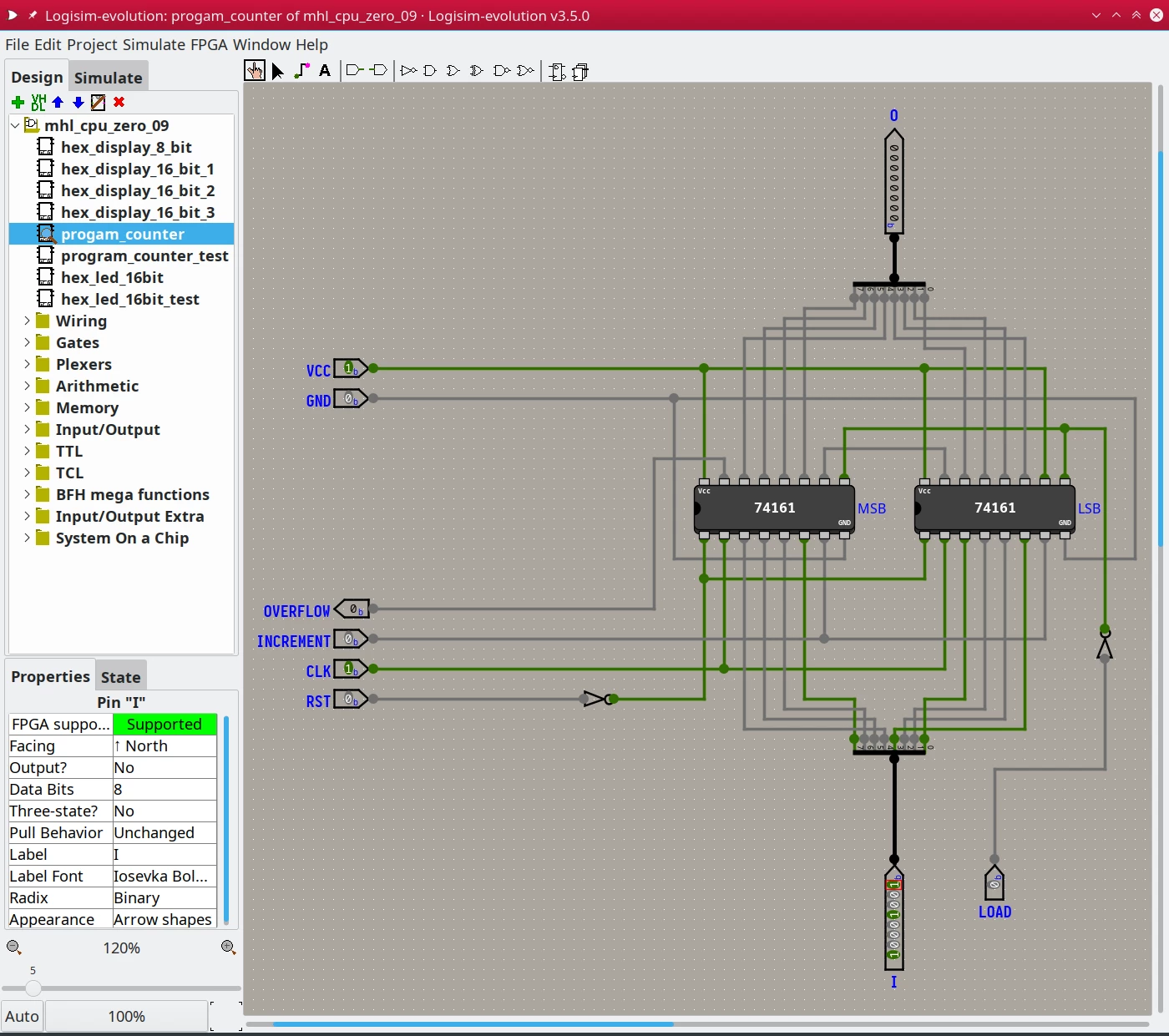

Screenshots & videos
About
Logisim-evolution is a completely free and open-source educational, cross-platform software for designing and simulating digital logic circuits. Project highlights: - easy to use circuit designer - logic circuit simulations - chronogram (to see the evolution of signals in your circuit) - electronic board integration - schematics can now be simulated on real hardware - VHDL components (components whose behavior is specified in VHDL!) - TCL/TK console (interfaces between the circuit and the user) - huge library of components (LEDs, TTLs, switches, SoCs) - Supports multiple languages - and more!
Additional information
- Developer
- Logisim-evolution developers
- License
- GPL-3.0
- Category
- Education
- Size
- 115.6 MB
- Homepage
- https://github.com/logisim-evolution/logisim-evolution
- Available via
- Flathub (Flatpak), Snap Store (stable build), Snap Store (stable build), AUR, AUR (bin build), AUR (git build), Nixpkgs, Alpine Linux, Void Linux
- Catalog data as of
- 9/3/2026 (dataset snapshot date — per-app update dates aren't tracked yet)
